Retractors
Retractors from Packers Kromer the
Advantages at a Glance
- Smooth work processes
- Minimized operator fatigue
- Less wear for employees and machines
- Extremely high operating safety
- Very easy servicing
- Very high durability
- Fast procurement channels
- Continuous further development of our product range
- Local contact partners
-

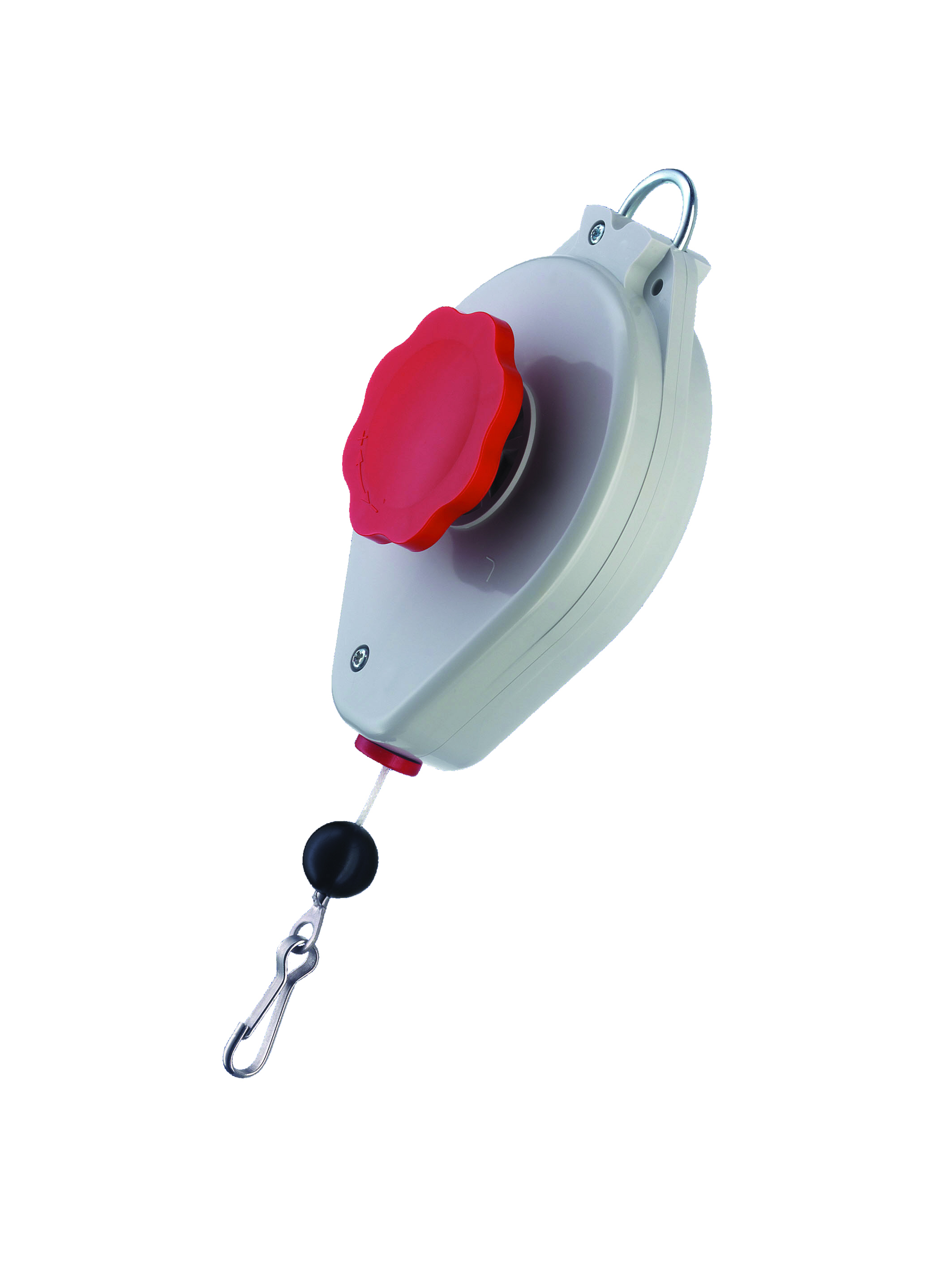

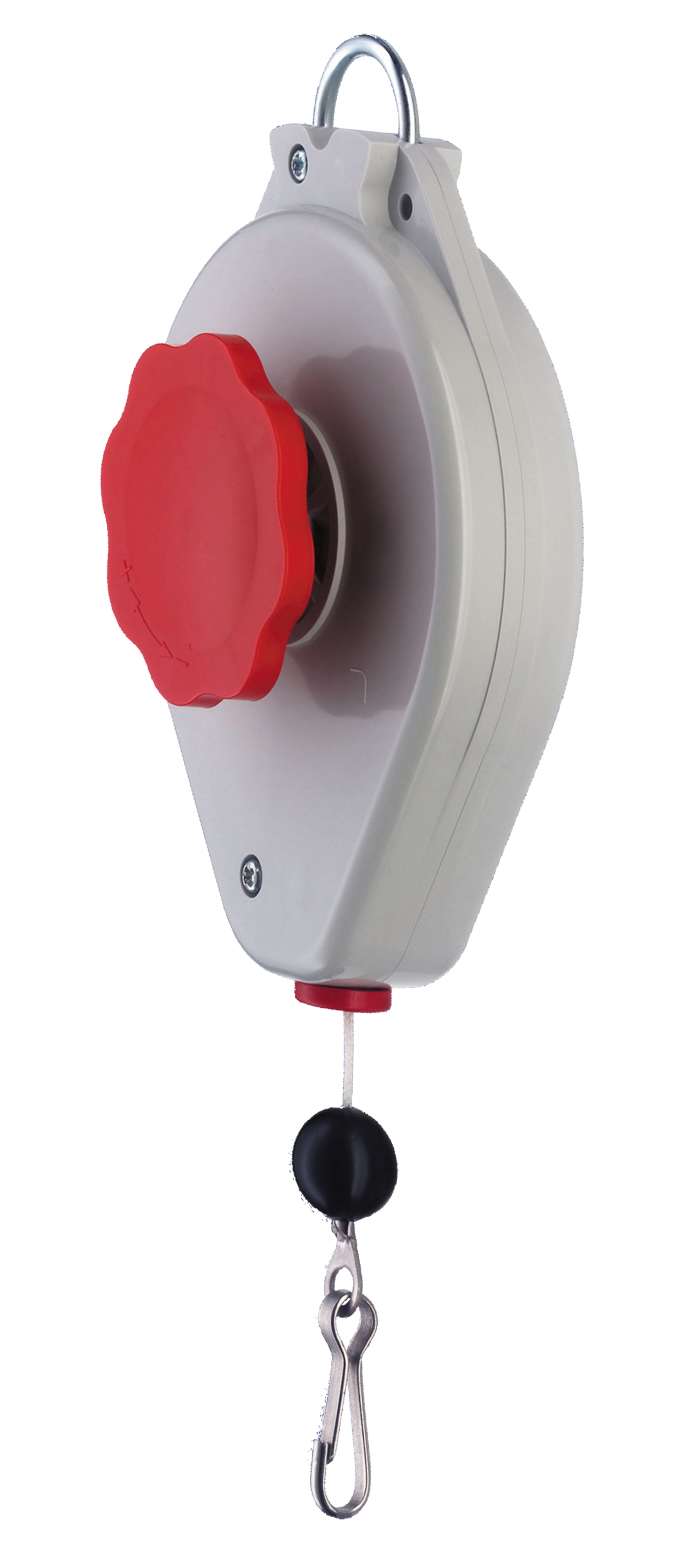

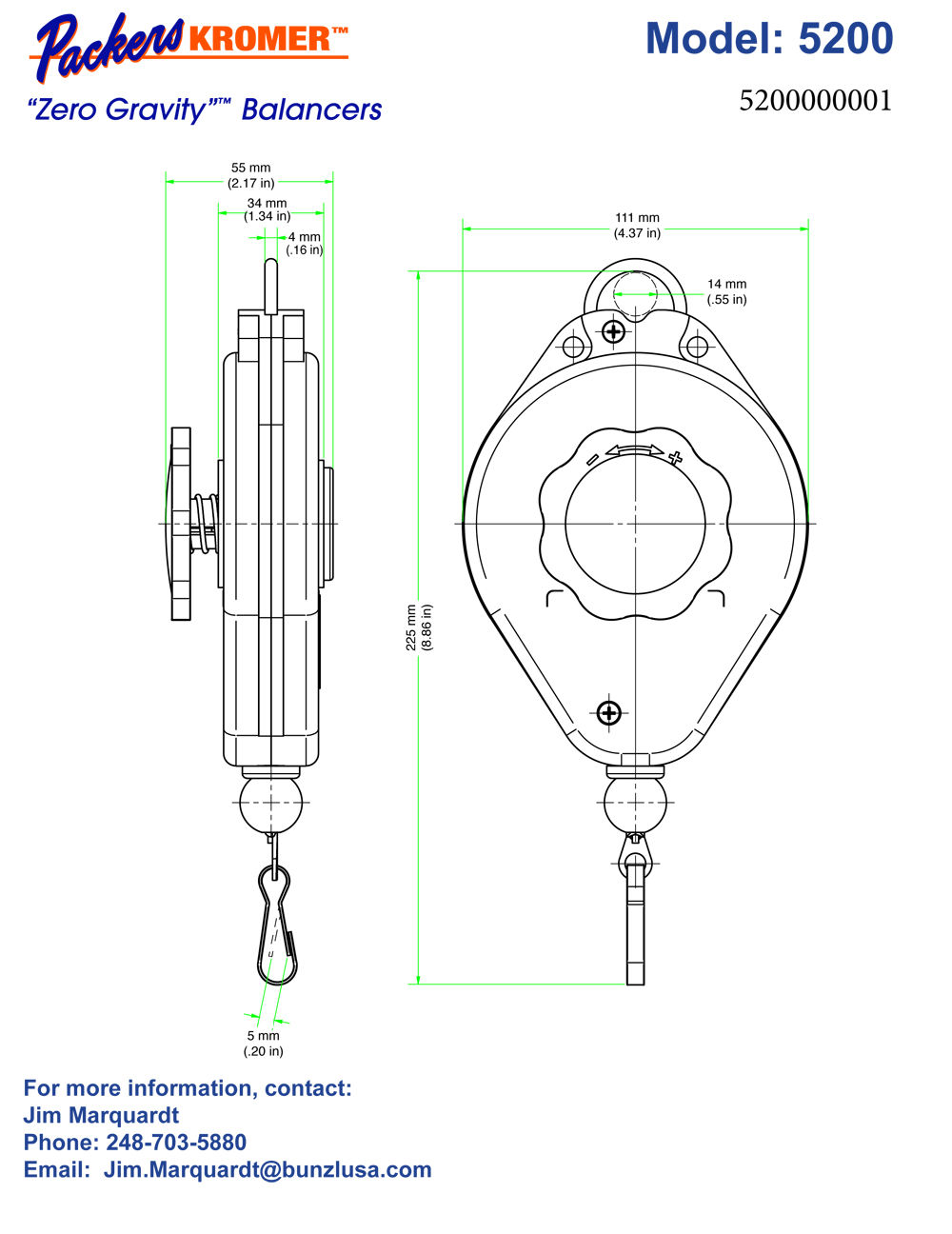

Type 5200 Light-Duty Retractor
An easy-to-use and reliable retractor that is very popular among users.
This light-duty retractor is an economy unit, capable of providing support for hand operated tools; however, unlike a balancer, tension increases as the cable is pulled out. With a maximum cable travel of 2.0 m (6.5 ft) this model provides ample working range for many applications. The load carrying capacity is adjustable within the working range of a specific model.
-
Housing:Impact- and abrasion-resistant plastic
-
Cable drum:Abrasion-resistant plastic
-
Cable:High-strength polyamide cable with elastic cable stop buffer and light-duty spring hook for load suspension
-
Spring:High-strength special suspension spring with easy load setting via handwheel
- Fully assembled unit
- Rigid housing
- Insulated suspension
-
Cable extension:2.0 m (6.56 ft)
ID No. Load Range (kg) Load Range (lbs) Cable Travel (m) Cable Travel (ft) 5200 0000 01 0.5 - 1.2 1.10 - 2.65 2.0 6.56 5200 0000 02 1.0 - 2.0 2.20 - 4.41 2.0 6.56
-

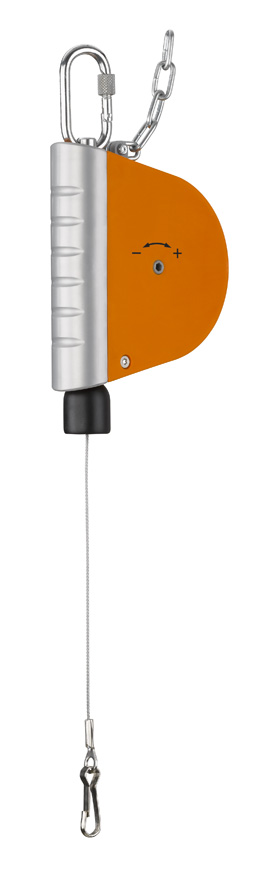

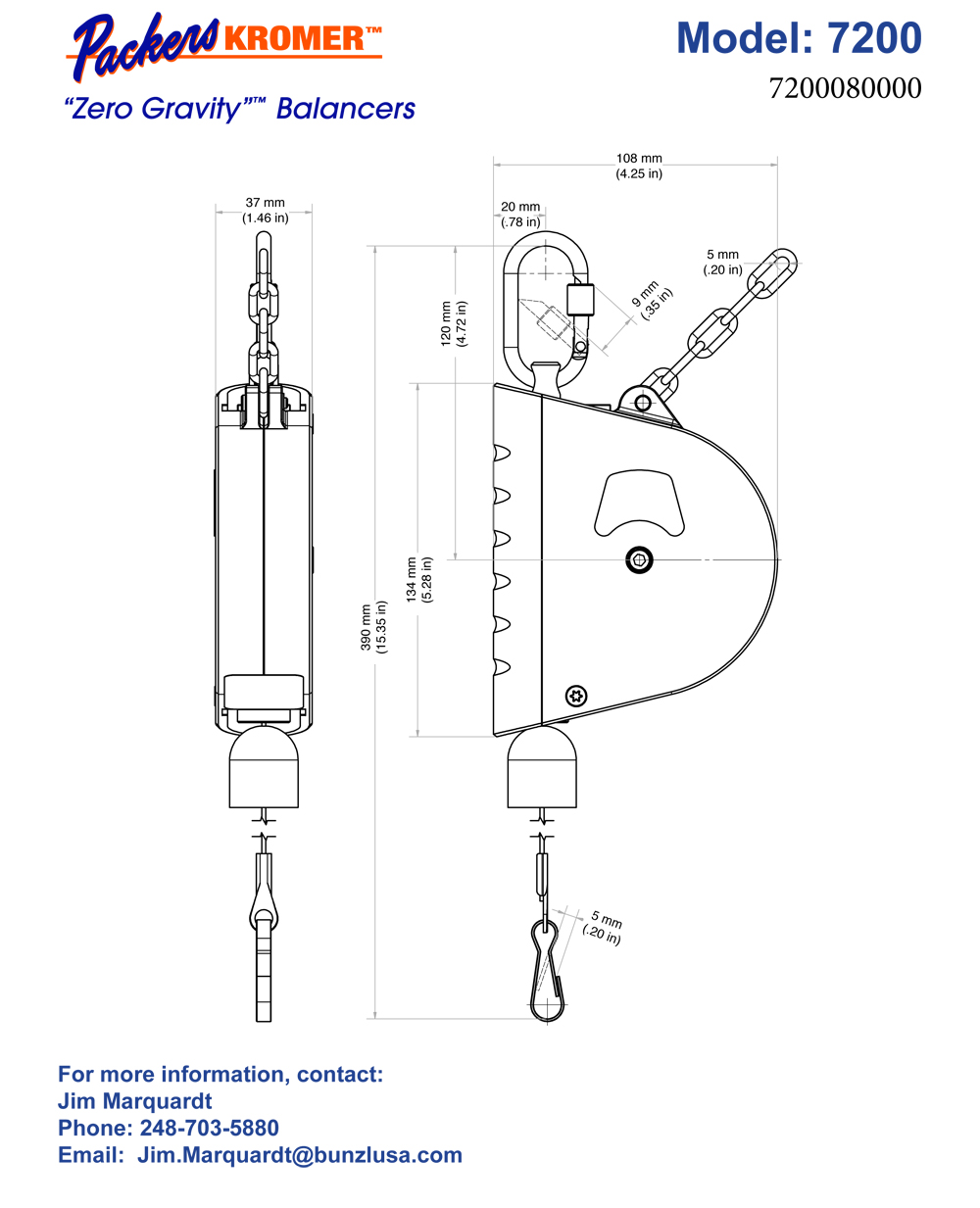

Type 7200 Light-Duty Retractor
Thanks to its high durability and quality, this model can be recommended as a fully convincing assistant for any workplace.
This light-duty retractor provides support for hand-operated tools; however, unlike a balancer, tension increases as the cable is pulled out. With a maximum cable travel of 1.6 m (5.2 ft), this model provides ample working range for many applications. The load-carrying capacity is adjustable within the working range of a specific model.
-
Housing:Orange high impact nylon
-
Cable drum:Abrasion-resistant nylon
-
Cable:High-strength anti-rotation steel cable with elastic cable stop buffer and light-duty spring hook for load suspension
-
Spring:High-strength riveted cold rolled steel spring for 5 times the spring life
-
Special features:Easy load setting
- Tested for safety (“GS” label)
- Fully assembled unit
- Rigid housing
- Insulated suspension
- With safety chain as a standard feature
-
Cable extension:1.6 m (5.25 ft)
-
Cable stop buffer:continuously adjustable
ID No. Load Range (kg) Load Range (lbs) Cable Travel (m) Cable Travel (ft) 7200 0800 01 0.3 - 1.5 0.7 - 3.3 1.6 5.25 7200 0800 02 1.2 - 2.5 2.6 - 5.5 1.6 5.25
-

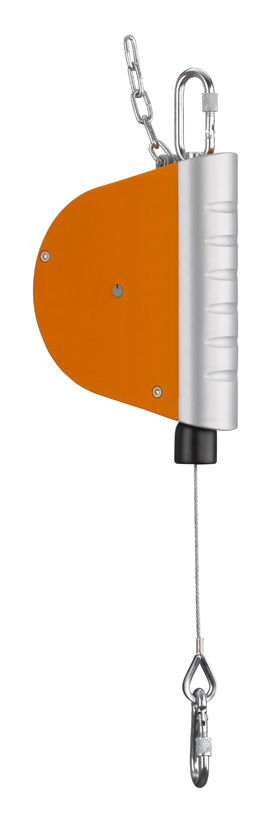

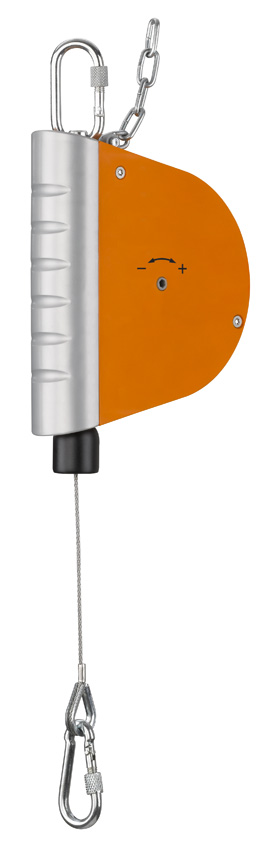

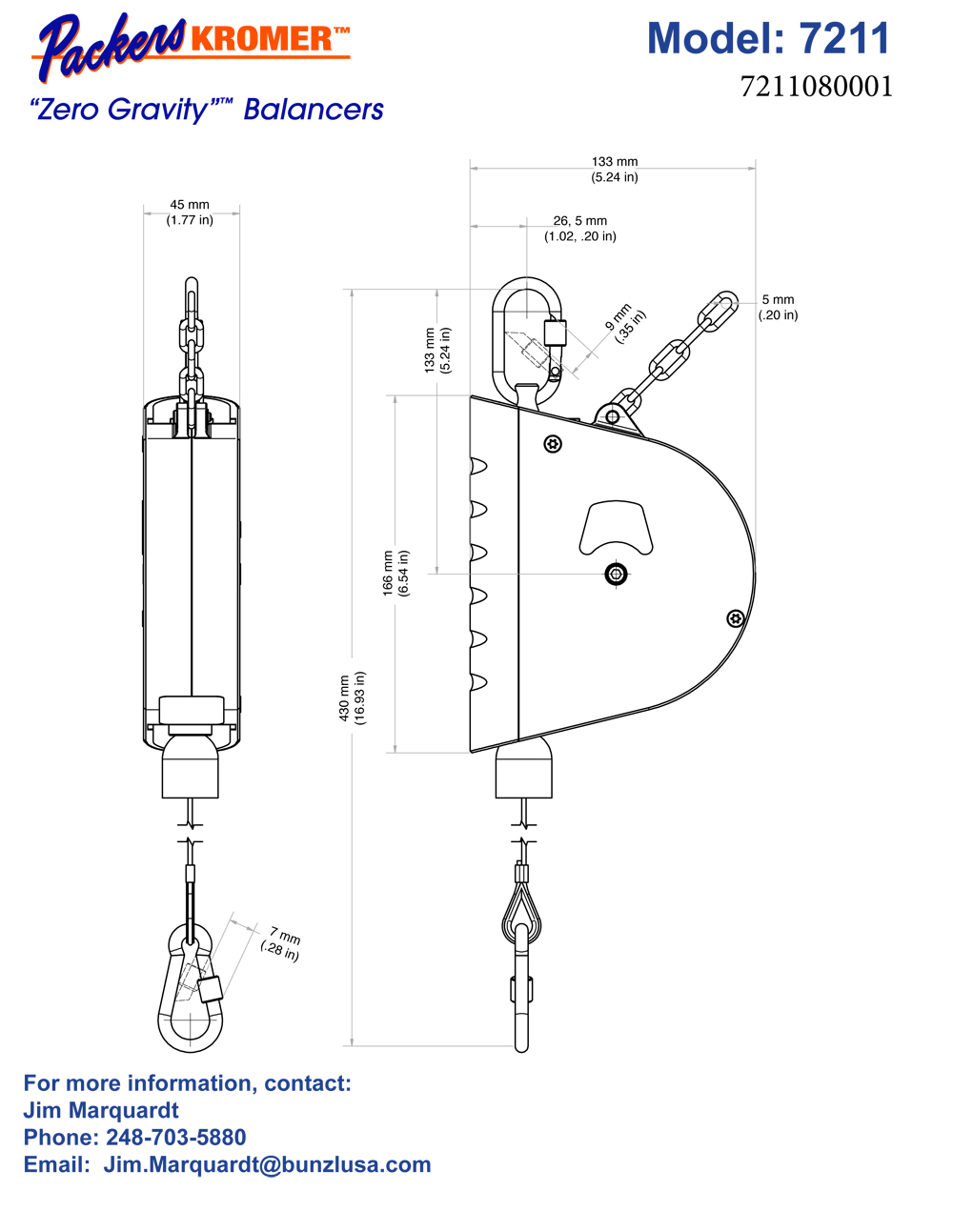

Types 7211 and 7212 Light-Duty Retractors with Optional Ratchet Lock
The optimized solution for small tools of all kinds.
This retractor provides support when working with small hand operated tools, or used in equipment to pull back objects in motion like robot cables and hose; however, unlike a balancer, tension increases as the cable is pulled out. With a maximum cable travel of 2.5 m (8.2 ft), this model provides ample working range for many applications. The load-carrying capacity is adjustable within the working range of a specific model.
The 7212 version comes with a ratchet lock in addition. This automatic arresting mechanism allows the load to be suspended in a predefined position if moved back at a lower speed.
-
Housing:Orange high impact nylon
-
Cable drum:Abrasion-resistant nylon
-
Cable:High-strength anti-rotation steel cable with elastic cable stop buffer and spring hook for load suspension
-
Spring:High-strength riveted cold rolled steel spring for 5 times the spring life
-
Special features:Easy load setting
- Tested for safety (“GS” label)
- Fully assembled unit
- Rigid housing
- Insulated suspension
- With safety chain as a standard feature
-
Cable extension:2.5 m (8.20 ft)
-
Cable stop buffer:continuously adjustable
ID No. w/o Ratchet Lock ID No. with Ratchet Lock Load Range (kg) Load Range (lbs) Cable Travle ( m) Cable Travle ( ft) 7211 0800 01 7212 0800 01 0.5 - 2.0 1.10 - 4.41 2.5 8.20 7211 0800 02 7212 0800 02 1.5 - 3.0 3.31 - 6.61 2.5 8.20
-

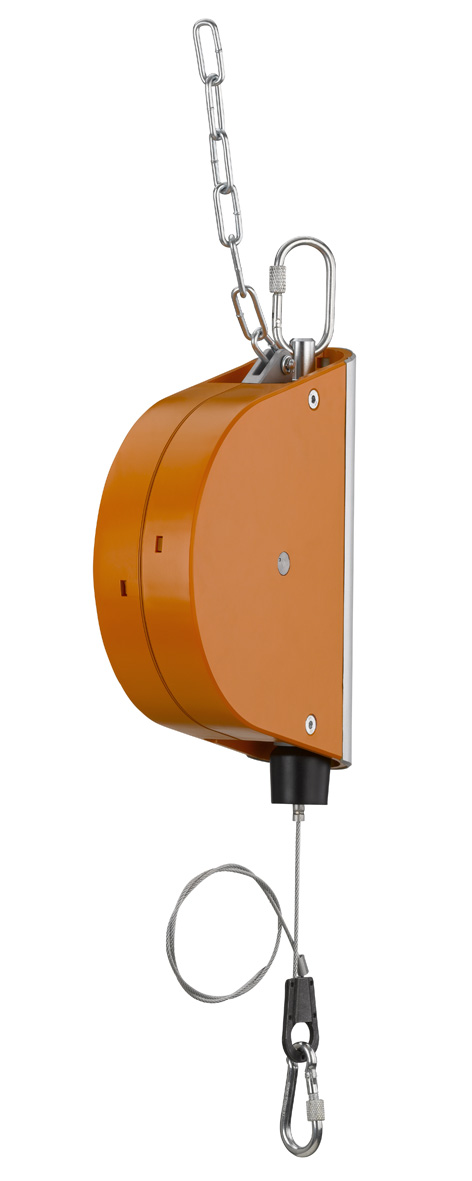

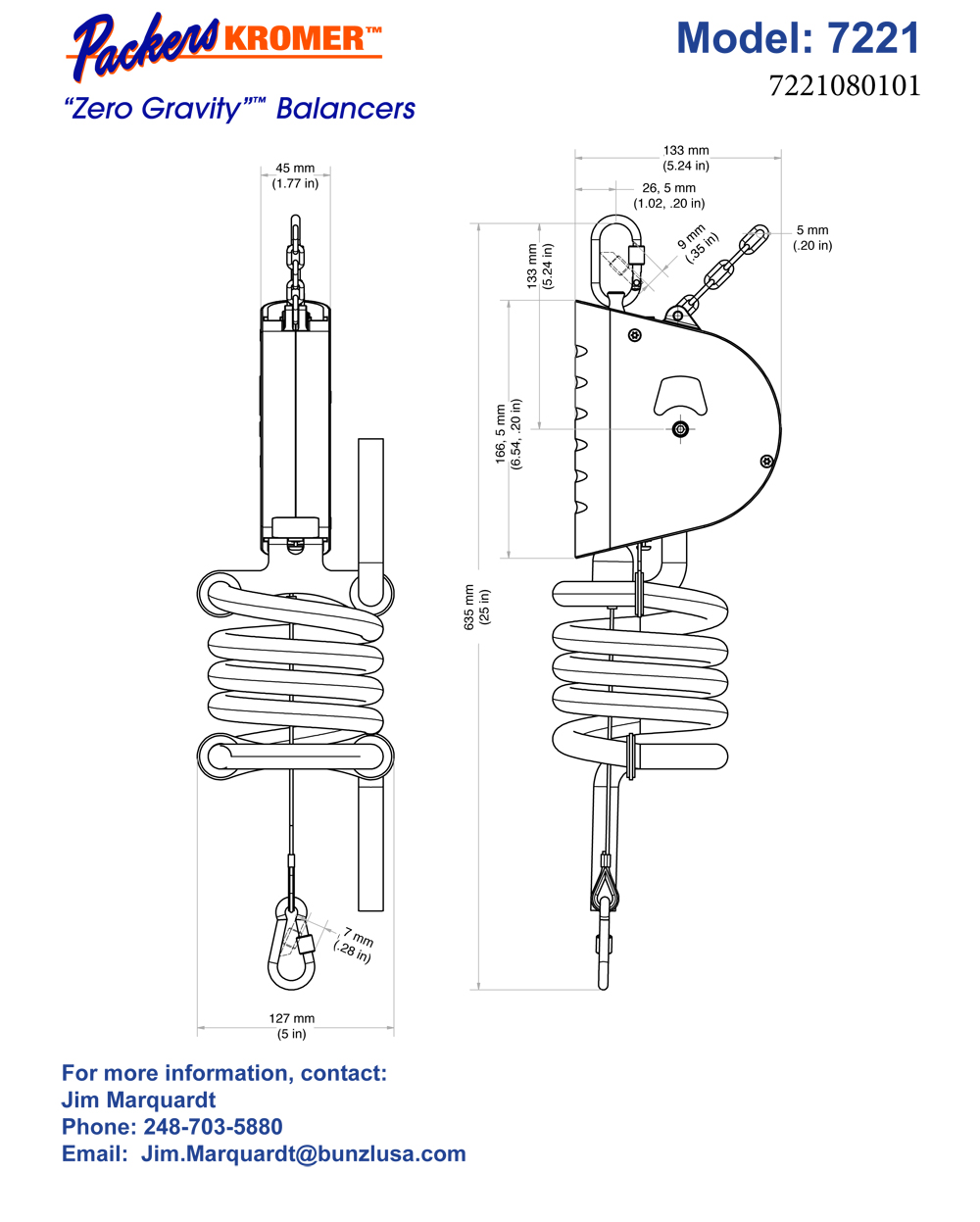

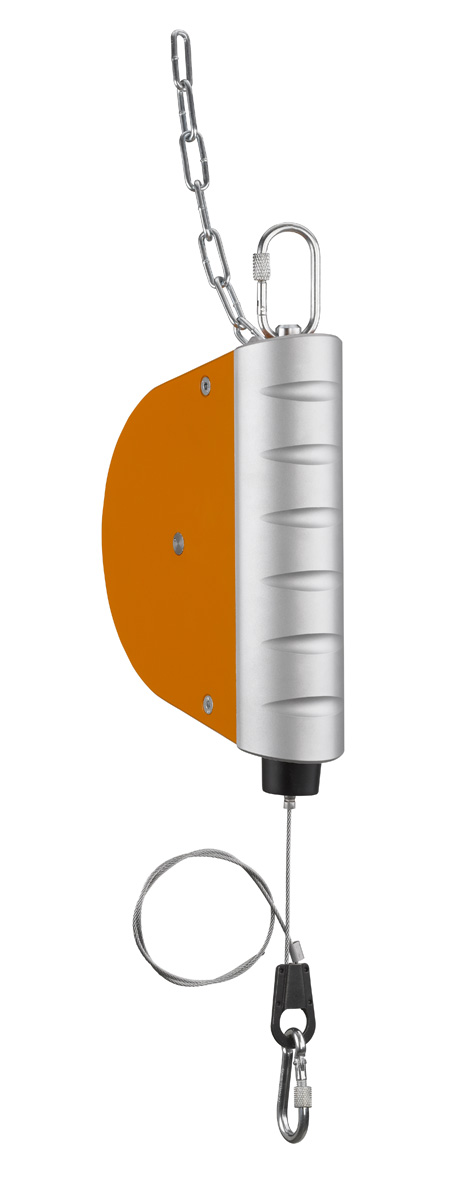

Types 7221 & 7222 Medium-Duty Retractors with Optional Ratchet Lock
These reliable retractors designed for continuous duty assure safe and precise operation in all fields of application.
This medium-duty retractor is designed to support heavier hand-operated tools, or used in equipment to pull back objects in motion like robot cables and hose; however, unlike a balancer, tension increases as the cable is pulled out. With larger cable extension range of 3.0 m (9.8 ft), this model provides ample working range for many applications. The load-carrying capacity is adjustable within the working range of a specific model.
Thanks to their quality and safety, these retractors have stood the test. Parts subject to wear, like the spring and cable, are easy to replace and available as spare parts. This series comes with a spring breakage safeguard as a standard feature that reliably prevents the suspended load from falling down if the spring breaks. Also standard is the secondary safety chain.
This series has a continuously rotatable adjusting screw, and incorporates a device that prevents inadvertent spring damage during load setting.
Just like its smaller counterpart, the 7222 version comes with a ratchet lock. This automatic arresting mechanism allows the load to be suspended in a predetermined position if returned at a lower speed.
-
Suspension:Rotary screw-type spring hook
-
Housing:Orange high impact nylon
-
Cable drum:Abrasion-resistant nylon
-
Cable:High-strength anti-rotation steel cable with elastic cable stop buffer and screw-type spring hook for load suspension. The cable can be continuously adjusted lengthwise via a cable wedge.
-
Spring:High-strength riveted cold rolled spring for 5 times the spring life.
-
Special features:Continuously adjustable and Version 7222 with ratchet lock.
- Tested for safety (“GS” label)
- Very rigid housing
- Screw-type spring hook as insulated suspension, swiveling and rotatable
- Ferrule for securing the cable end
- Spring fracture safeguard and safety chain as standard features
- Cable drum lockable
-
Cable extension:3.0 m (9.84 ft)
-
Cable stop buffer:continuously adjustable
ID No. w/o Ratchet Lock ID No. with Ratchet Lock Load Range (kg) Load Range (lbs) Cable Travle ( m) Cable Travle ( ft) 7221 0800 01 7222 0800 01 2.0 - 5.0 4.41 - 11.02 3.0 9.74 7221 0800 02 7222 0800 02 4.0 - 8.0 8.82 - 17.63 3.0 9.74 7221 0800 03 7222 0800 03 7.0 - 10.0 15.43 - 22.05 3.0 9.74 7221 0800 04 7222 0800 04 10.0 - 14.0 22.05 - 30.86 3.0 9.74
-
PRECISION TEST WINNERS
Kromer zero-gravity balancers impress with their ideal balancing performance that clearly sets them apart. -
PERFECT ERGONOMICS
Kromer spring balancers and Kromer retractors make your work process not only more efficient but safer, as well. Great for your staff and machinery. -
DURABILITY TEST WINNERS
Kromer zero-gravity balancers and Kromer retractors offer a five times higher service life than comparable products. -
STRINGENT QUALITY GUIDELINES
Kromer tool balancers and Kromer retractors have been developed, designed and manufactured to meet the highest quality standards. -
SAFETY TESTED
Kromer tool balancers meet the requirements of DIN 15112 and bear the "GS" mark, certifying safety. They also comply with CE regulations.
